Car OBD2 With DTC Fuel Consumption Statistics GPS Tracker
Date：2022-05-23 / Popularity： / Source：未知

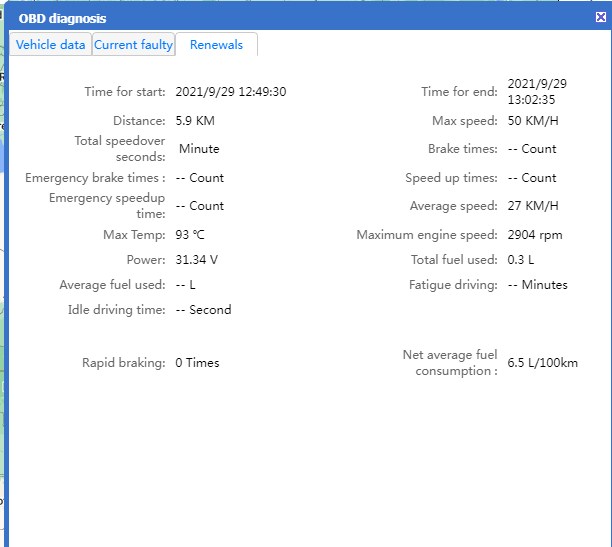

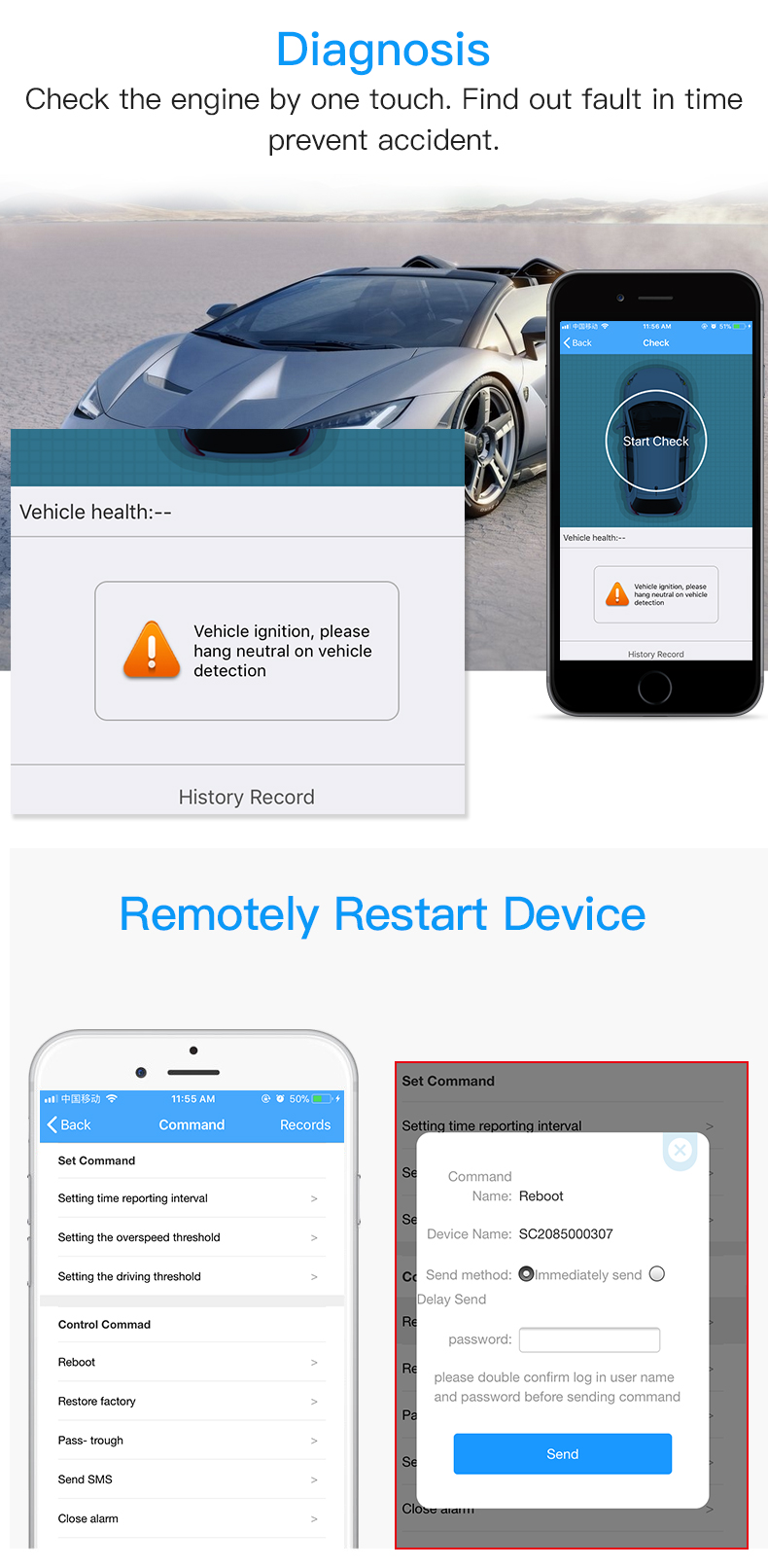

1.OBD Diagnostic:
*Fault code detection;
*VIN Identification;
*SIM Card or M2M Card Identification;

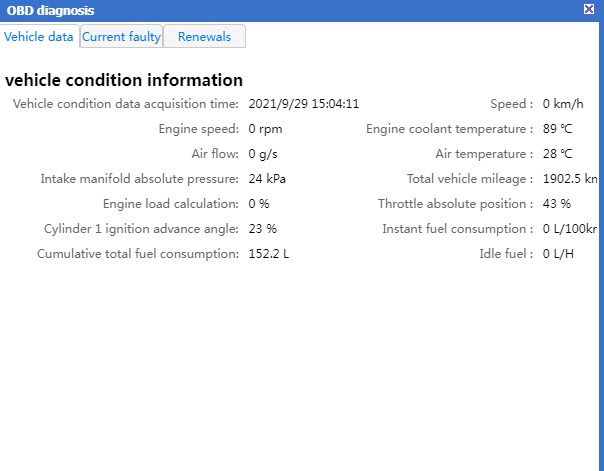

*Vehicle condition detection reminder;
*Overspeed,Fatigue driving reminder.
2. Driving Behavior Analysis:
*Emergency acceleration;
*Emergency brake;
*Highest speed/Average speed/Driving time/mileage/Fuel consumption/Driving score/Postage measurement
*Average fuel consumption per 100km.
3. GPS Positioning
*Historical Track Playback;
*Real time tracking;
*ACC Detection;
*GEO Fence;
*Remove/Power Off Alarm.
4.Other Functions
*Violation query;
*Insurance expiration reminder;
*Annual review expiration reminder.
5.Specifications:
|
OBD2 GPS Tracker with Diagnosis and Fuel Consumption |
|
|
Material |
ABS |
|
Size |
48*15*23mm |
|
Weight |
0.12kg |
|
Color |
Black,White |
|
Network |
2G/GSM/GPRS |
|
Frequency |
850/900/1800/1900MHz |
|
Working Temperature: |
-20°C to +75°C |
|
Working Current |
<110mA@12V |
|
GPS Sensitivity |
-160dBm |
|
GPS Positioning Accuracy |
5-10CEP |
|
Supported Vehicle Protocols |
Support OBDII protocol, Compliant with 90% vehicle after 2008,ISO-9141-2,ISO-14230(KW)KWP2000,ISO-15765, CANBUS |
|
Working Voltage |
9-30V DC |
|
Interface |

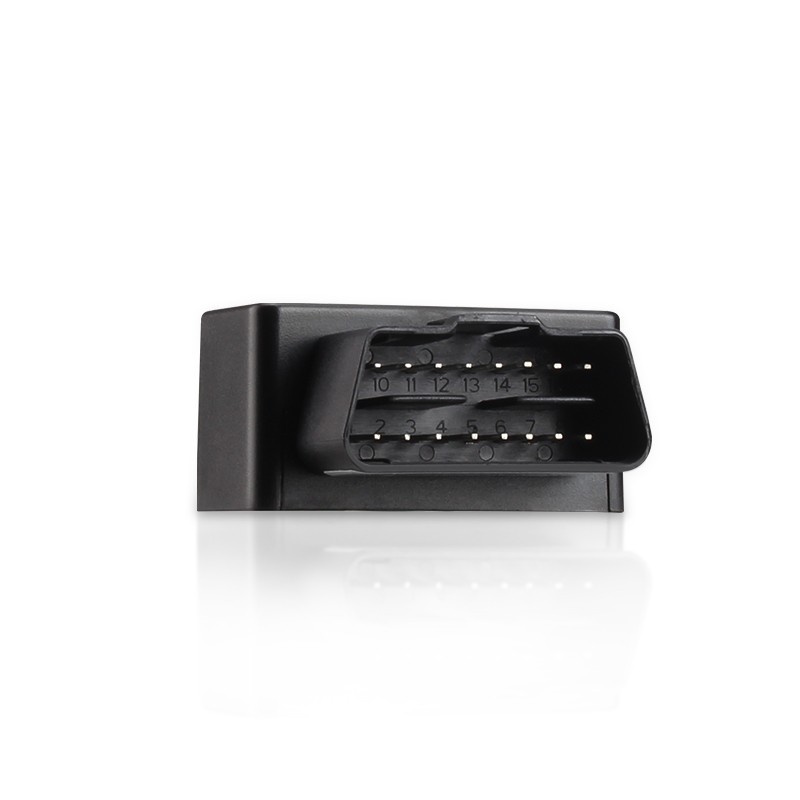

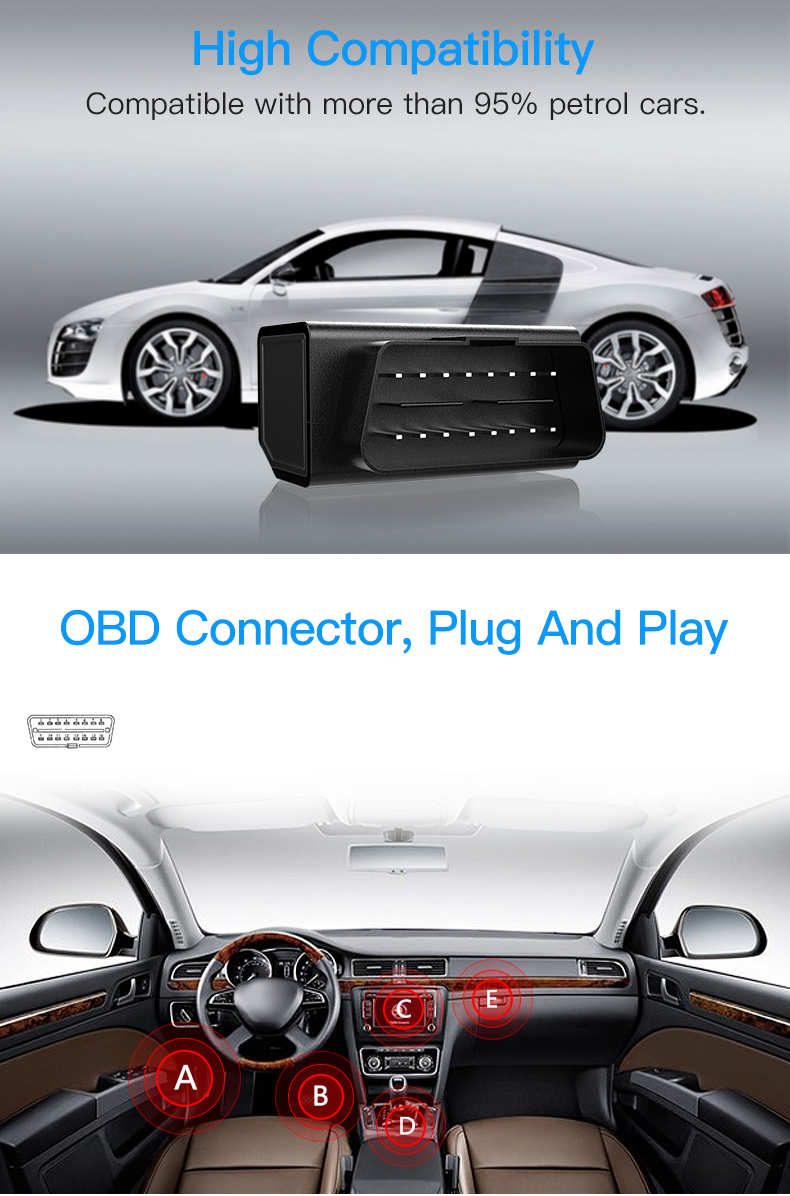

OBD Port: Support 16 pin standard OBDII port. |
|
Positioning Mode |
GPS, LBS |
|
GSM Chip |
UB-7020 |
|
Working Humidity |
5%-95% |
Pictures:
