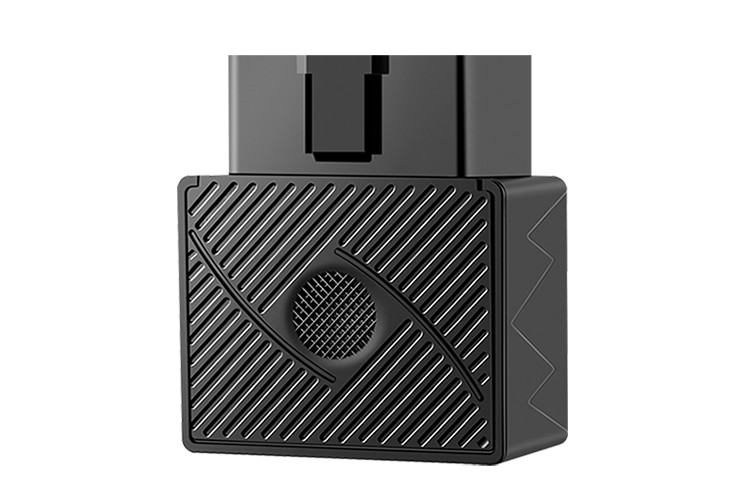

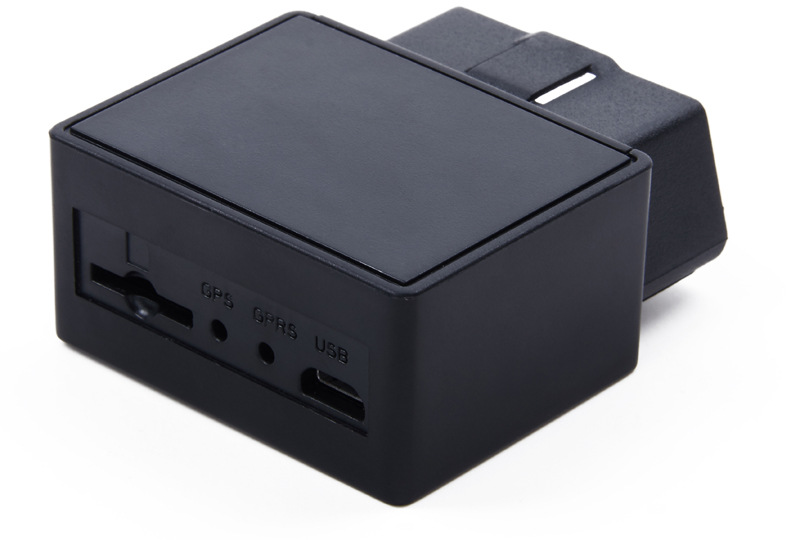

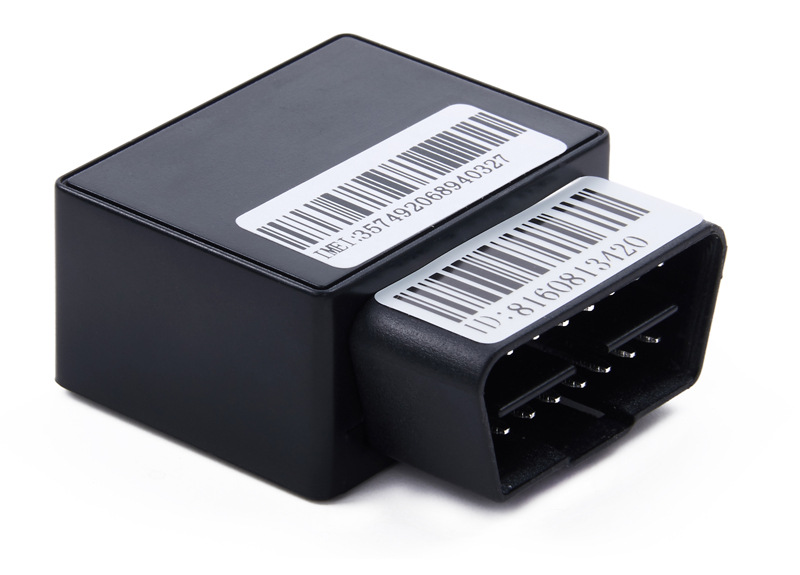

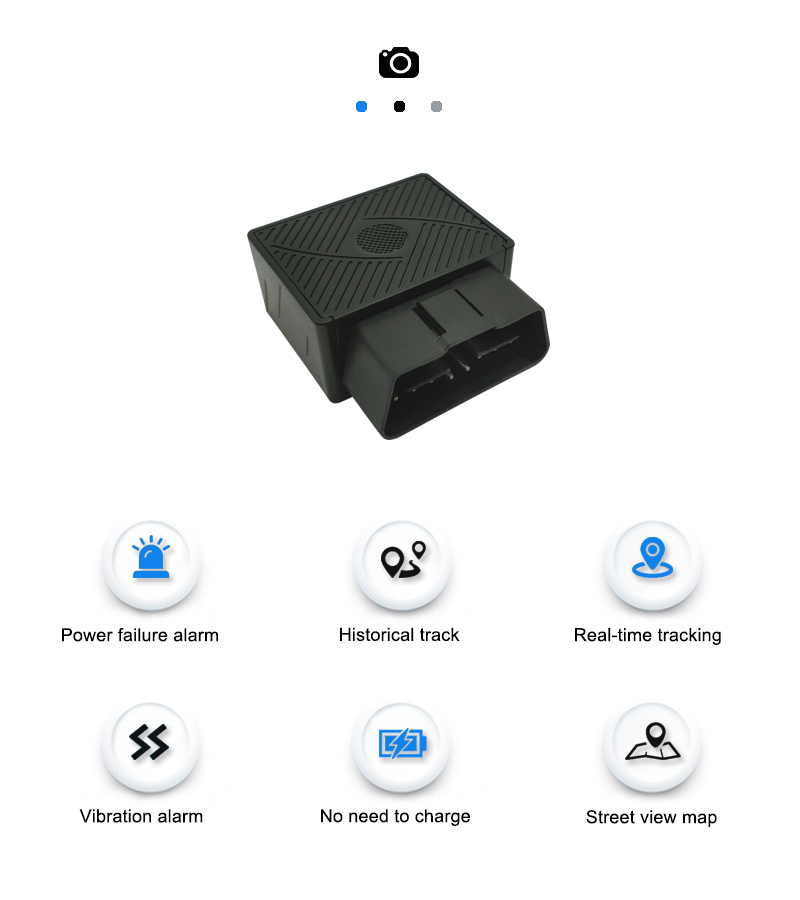

OBD Car GPS Tracker ES-GP34
Model: ES-GP34
Date：2022-01-08 / Popularity： / Source：未知
Factory Wholesale OBD2 SIM Card GPS Tracker With Diagnostic Function
| User | Vehicle , motorcycle |
| Features | GPS+LBS two mode of positioning, live tracking, geo-fence,vibrating sensor etc |
| Structure | |
| Color | Black |
| Size | 98*53*13 MM |

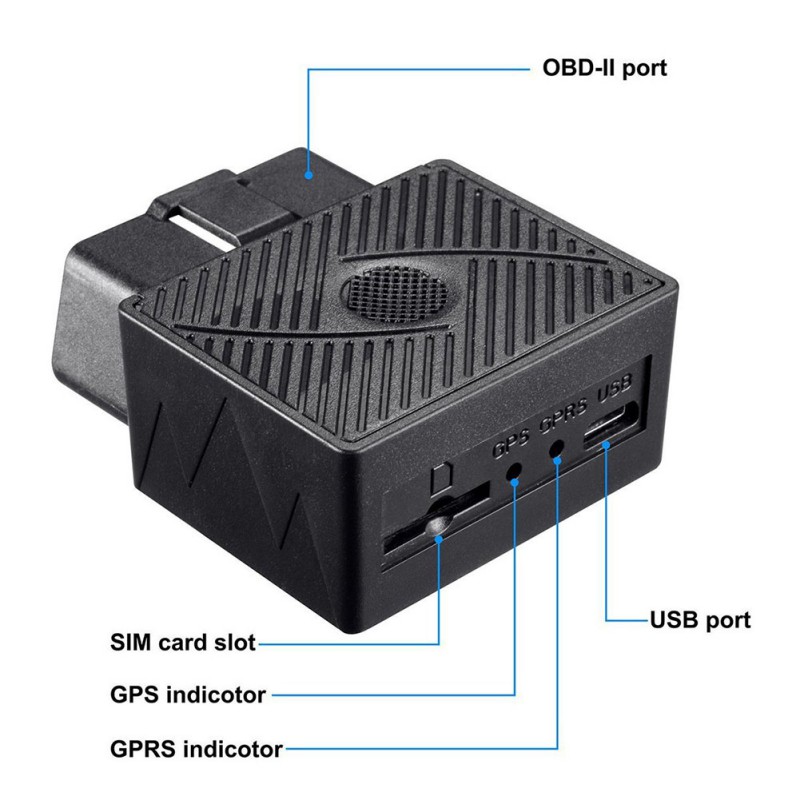

| Buttons | Power button and SOS key |
| GPS anttnna | High sensitive ceramic antenna |
| GSM antenna | laser etching LDS antenna |
| Display screen | No screen |
| Battery | 200mAh |

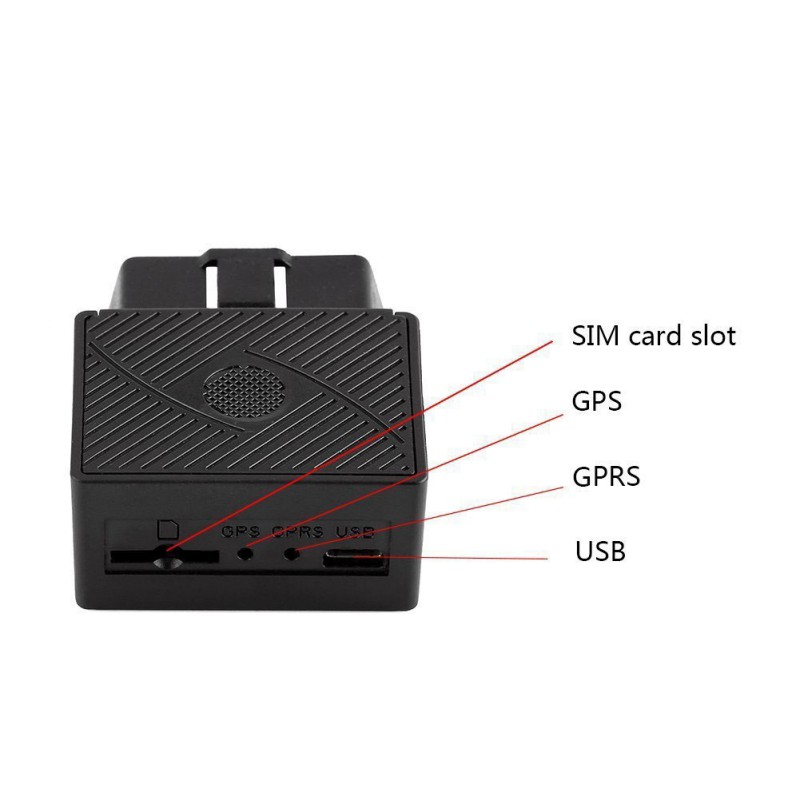

| SIM card slot | one slot |
| Hardware | |
| Chipset | MTK MT6261 |
| GPS chip | MTK3337 |
| GPRS | Class 12 |
| GPS singal | L1,1575.42MHz C/A code |
| GPS channels | 22 channels |
| GPS chip | Tracking Sensitivity:-165dBm, acquisition sensitivity:-148dBm |
| GPS accuracy | 5~15m |
| LBS accuracy | 100-1000M |
| Working temperature | -20~70°C |
| working humidity | 5% to 95% |
| Function | |
| Supported OS | Support android 2.3 or above ,IOS5.0 or above |
| Languages | Chinese/English |
| GSM+GPRS+GPS | GPS+LBS two modes |
| Power manage | Ultra-low power consumption management, intelligent dormancy |

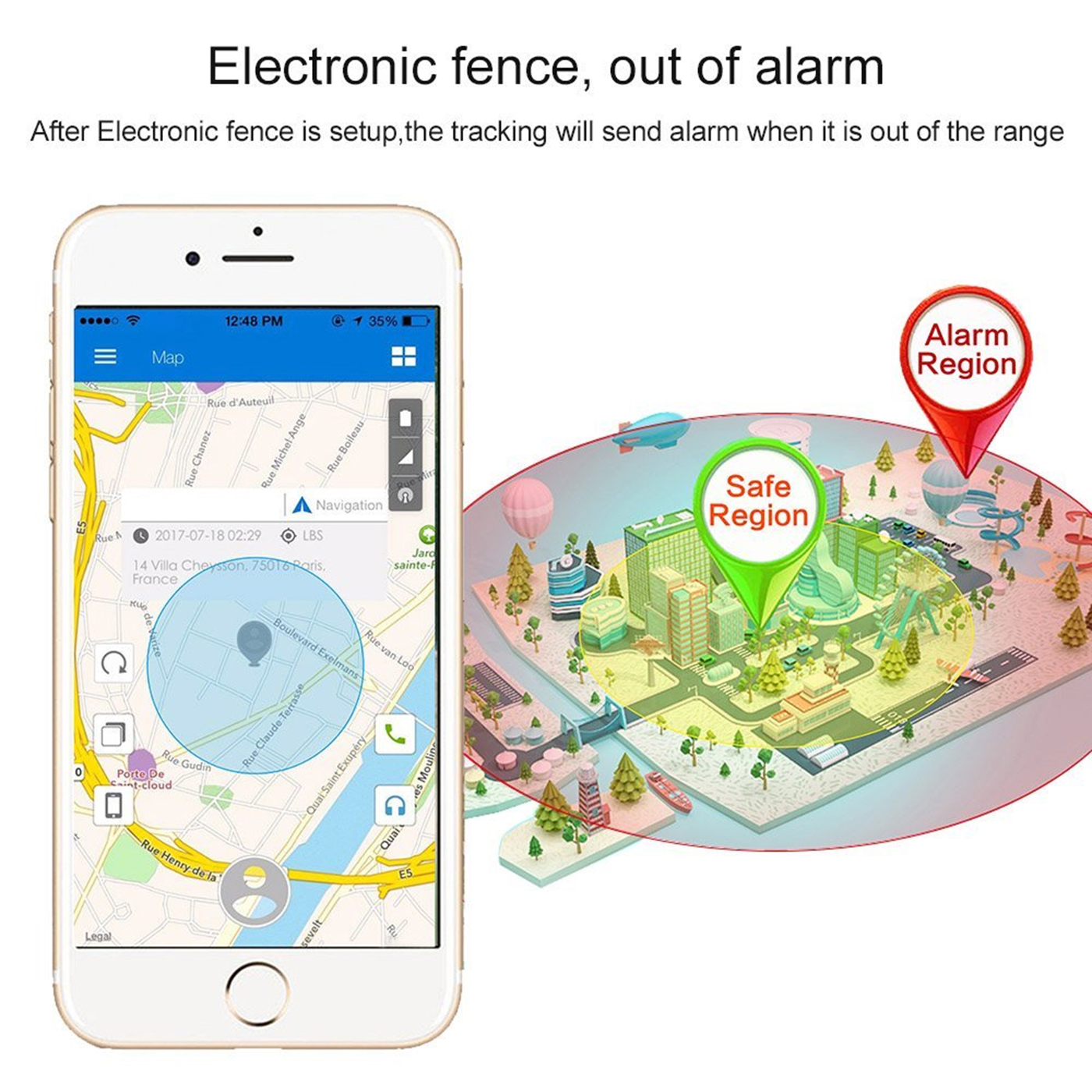

| Geofence | Alarm when out of setup range |
| Historical track | Supported |
| Vibrating sensor | Supported |

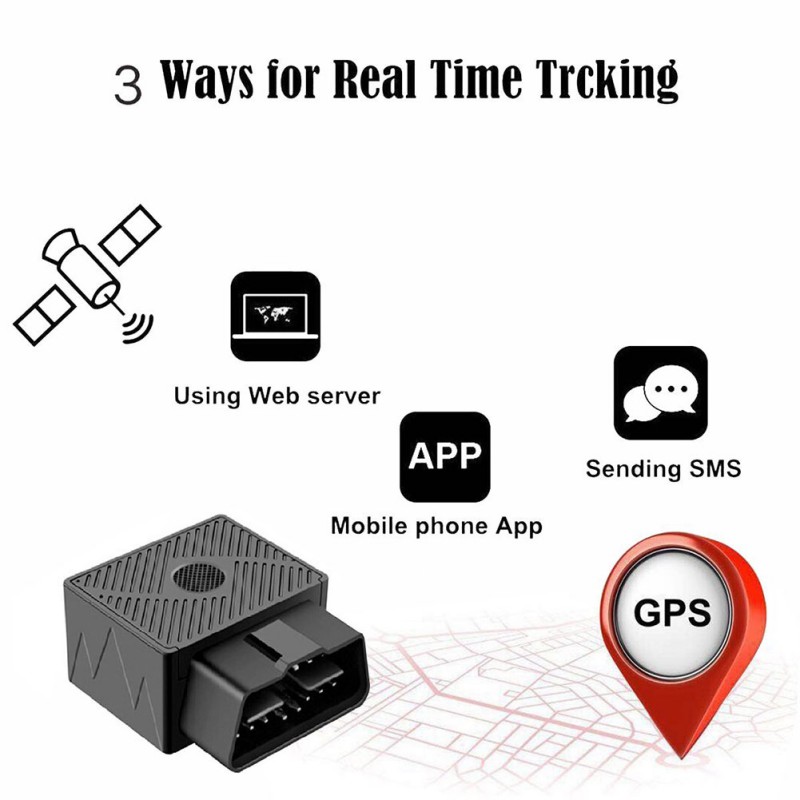

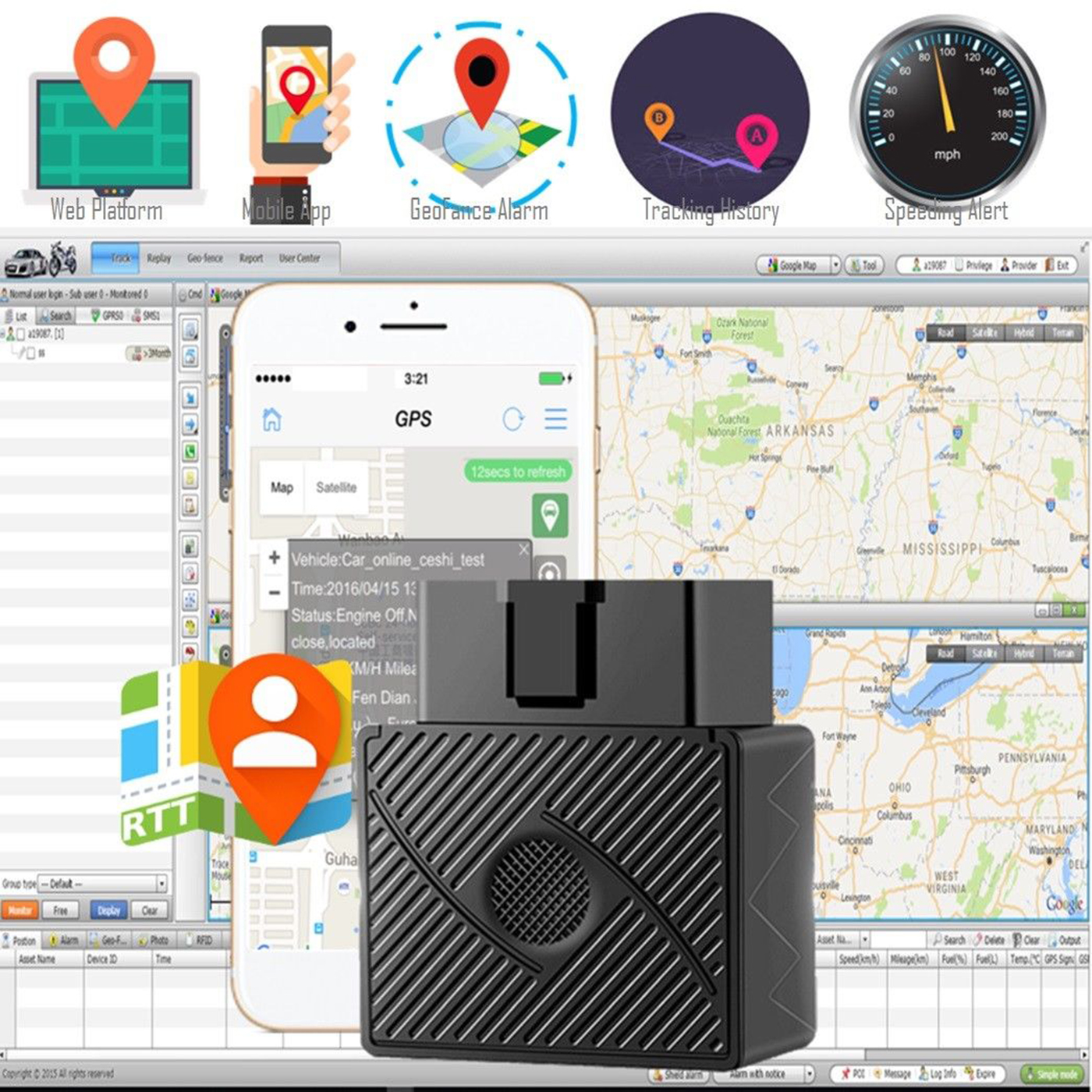

| Platform | APP,Website,Wechat,SMS |
| ACC ignition signal | Supported |
| Microphone/Loudspeaker | Remote voice monitor,voice chat (optional) |
| Shear line alarm(take off alarm) |
Supported (optional) |
| OBD2 detector | Supported (optional) |
| Historial track | 180 days |
|
Deviating from the planning route alarm |
Supported |
| Over-speed alarm | Supported |
| Collision alarm | Supported (optional) |
| A cartwheel alarm | Supported (optional) |
vehicle gps anti theft with geo-fence alarm ,vehicle GPS tracker
